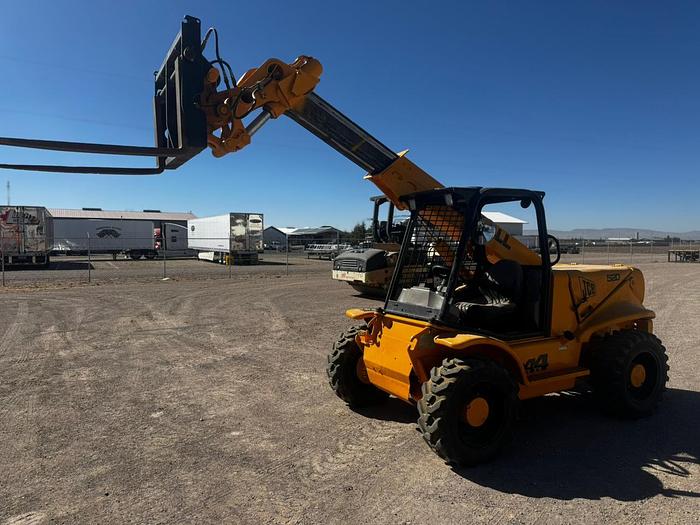

1999 JCB 520

Engine

Manufacturer: Perkins

Model: 1004

Power Output: Approximately 76 horsepower (57 kW)

Torque: 213.7 lb-ft at 1,400 rpm

Dimensions:

Overall Length: 11.78 feet (3.59 meters)

Width Over Tires: 5.91 feet (1.80 meters)

Overall Height: 6.96 feet (2.12 meters)

Wheelbase: 5.02 feet (1.53 meters)

Ground Clearance: 0.99 feet (0.30 meters)

Turning Radius (Outside Tires): 9.85 feet (3.00 meters)

Lift Capabilities:

Maximum Lift Capacity: 4,400 pounds (2,000 kg)

Maximum Lift Height: 16.41 feet (5.0 meters)

Maximum Forward Reach: 9.75 feet (2.97 meters)

Capacity at Maximum Lift Height: 4,400 pounds (2,000 kg)

Capacity at Maximum Forward Reach: 1,650 pounds (748 kg)

Operational Specifications:

Operating Weight: Approximately 9,900 pounds (4,490 kg)

Tire Size: 10.5/80-18

Transmission Type: 4-speed Synchro Shuttle

Number of Gears: 4 forward and 4 reverse

Video Attached
