2003 CAT 430D

About the 2003 Caterpillar 430D

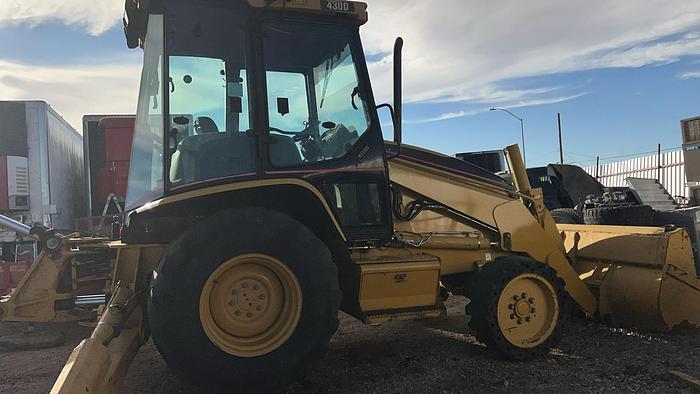

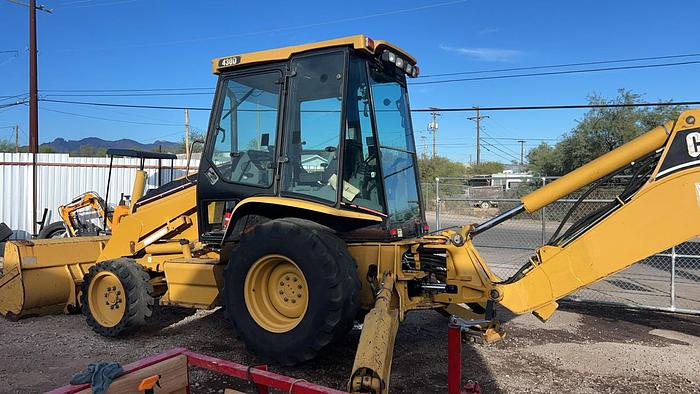

2003 Caterpillar 430D backhoe loader out of Tucson, AZ. It’s got 5735 hours on it and runs solid—perfect for anyone needing a dependable machine for digging or excavation work. It’s powered by a 89-horsepower Cat 3054C turbo diesel engine, which gives it plenty of grunt for moving dirt or breaking ground. At 16,215 pounds, it’s stable enough for steady operation, and with 2-wheel drive.

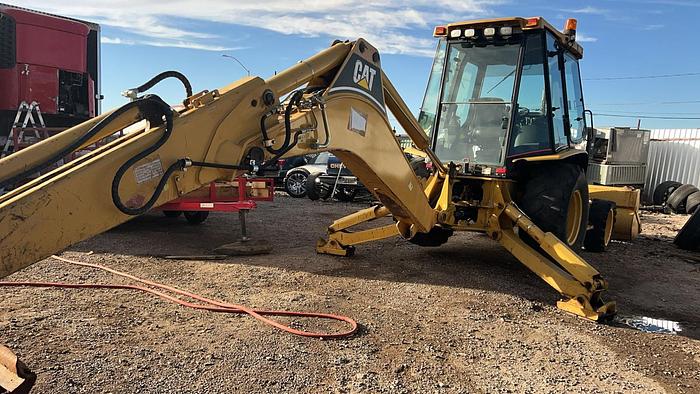

Extendahoe feature, so you can stretch the backhoe out to a 19-foot-7-inch dig depth or keep it at 15 feet 3 inches with the standard setup—makes it real versatile for deeper trenches or reaching over obstacles. The loader up front has a 1.25-cubic-yard bucket with a 10,250-pound breakout force and can lift 6,650 pounds to full height, so it’s no slouch when you’re loading material. The hydraulics pump out 43 gallons per minute at 3,300 psi, and it’s got the option for auxiliary lines if you want to hook up a hammer or other tools.

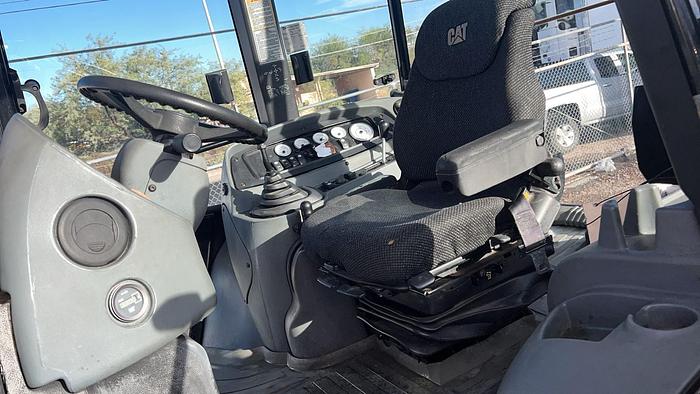

It comes with an enclosed cab—EROPS with air conditioning—which keeps you comfortable when you’re working long hours in the Texas heat. At 5735 hours, it’s still got a lot of life left; these Cats are built to last way beyond that if you take care of them. It’s a straightforward machine—no fancy extras, just a reliable backhoe that gets the job done. Great for contractors or adding to a fleet without breaking the bank. I can get you more details or pics if you’re interested—just let me know.

Key Specifications for the 2003 Caterpillar 430D Backhoe Loader

• Engine: Caterpillar 3054C DIT, 4.4L (268 cu in), 4-cylinder, turbocharged, direct-injection diesel
• Horsepower: 89 hp (66 kW) net peak at 2,200 RPM
• Torque: 286 lb-ft (388 Nm) at 1,400 RPM
• Operating Weight: 16,215 lbs (7,353 kg) base with 2WD, EROPS, and Extendahoe (varies slightly with options)
• Drive System: 2WD standard (4WD optional, but yours is 2WD per listing)
• Transmission: Power Shuttle, 4-speed forward, 4-speed reverse, single-stage torque converter
• Max Travel Speed: 20.9 mph (33.7 km/h) forward and reverse
• Backhoe Digging Depth (Standard): 15 ft 3 in (4.64 m)
• Backhoe Digging Depth (Extendahoe): 19 ft 7 in (5.97 m) with arm extended
• Backhoe Reach from Swing Pivot: 19 ft 7 in (5.97 m) at ground level
• Backhoe Bucket Digging Force: 14,732 lbs (65.5 kN)
• Dipperstick Digging Force: 9,448 lbs (42 kN) standard, 7,866 lbs (35 kN) extended
• Loader Bucket Capacity: 1.25 cu yd (0.96 m³) heaped (general-purpose bucket)
• Loader Breakout Force: 10,250 lbf (45.6 kN)
• Loader Lift Capacity (Full Height): 6,650 lbs (3,016 kg)
• Hydraulic System: Closed-center, load-sensing, piston pump, 43 gpm (163 L/min) at 2,200 RPM
• Hydraulic Pressure: 3,300 psi (227 bar)
• Auxiliary Hydraulics: Optional, supports attachments like hammers (flow varies with setup)
• Fuel Tank Capacity: 33.8 gal (128 L)
• Wheelbase: 7 ft 3 in (2.20 m)
• Ground Clearance: 11.5 in (0.29 m)
• Height (to Top of Cab): 9 ft 5 in (2.87 m) with EROPS
• Length (Transport): 24 ft 2 in (7.36 m) with Extendahoe retracted
• Tires (Front/Rear): 11L-16 (front), 19.5L-24 (rear) standard for 2WD
• Swing Arc: 180 degrees
• Stabilizer Spread (Operating): 10 ft 8 in (3.25 m)
